A First Example

This example shows how to train and rollout a policy for the CartPole environment with A2C. It also gives a small glimpse into the Maze framework.

Training and Rollouts

To train a policy with the synchronous advantage actor-critic (A2C), run:

maze-run -cn conf_train env.name=CartPole-v0 algorithm=a2c

All outputs of the training run including model weights will be stored in outputs/<exp-dir>.

To perform rollouts for evaluating the trained policy, run:

maze-run env.name=CartPole-v0 policy=torch_policy input_dir=outputs/<exp-dir>

This performs 50 rollouts and prints the resulting performance statistics to the command line:

 step|path                                                                |             value
=====|====================================================================|==================
    1|rollout_stats  DiscreteActionEvents  action    substep_0/action     | [len:7900, μ:0.5]
    1|rollout_stats  BaseEnvEvents         reward    median_step_count    |           157.500
    1|rollout_stats  BaseEnvEvents         reward    mean_step_count      |           158.000
    1|rollout_stats  BaseEnvEvents         reward    total_step_count     |          7900.000
    1|rollout_stats  BaseEnvEvents         reward    total_episode_count  |            50.000
    1|rollout_stats  BaseEnvEvents         reward    episode_count        |            50.000
    1|rollout_stats  BaseEnvEvents         reward    std                  |            31.843
    1|rollout_stats  BaseEnvEvents         reward    mean                 |           158.000
    1|rollout_stats  BaseEnvEvents         reward    min                  |            83.000
    1|rollout_stats  BaseEnvEvents         reward    max                  |           200.000

To see the policy directly in action you can also perform sequential rollouts with rendering:

maze-run env.name=CartPole-v0 policy=torch_policy input_dir=outputs/<exp-dir> \
runner=sequential runner.render=true

Tensorboard

To watch the training progress with Tensorboard start it by running:

tensorboard --logdir outputs/

and view it with your browser at http://localhost:6006/.

Training Outputs

For easier reproducibility Maze writes the full configuration compiled with Hydra to the command line an preserves it in the TEXT tab of Tensorboard along with the original training command.

algorithm:
  device: cpu
  entropy_coef: 0.0
  gae_lambda: 1.0
  gamma: 0.98
  lr: 0.0005
  max_grad_norm: 0.0
  n_rollout_steps: 20
  policy_loss_coef: 1.0
  value_loss_coef: 0.5
env:
  env: CartPole-v0
  type: maze.core.wrappers.maze_gym_env_wrapper.GymMazeEnv
log_base_dir: outputs
model:
  type: maze.perception.models.template_model_composer.TemplateModelComposer
  distribution_mapper_config: {}
  model_builder:
    type: maze.perception.builders.ConcatModelBuilder
    modality_config:
      feature:
        block_params:
          hidden_units: [32, 32]
          non_lin: torch.nn.SELU
        block_type: dense
      hidden: {}
      recurrence: {}
    observation_modality_mapping:
      observation: feature
  critics:
    type: maze.perception.models.critics.StateCriticComposer
...

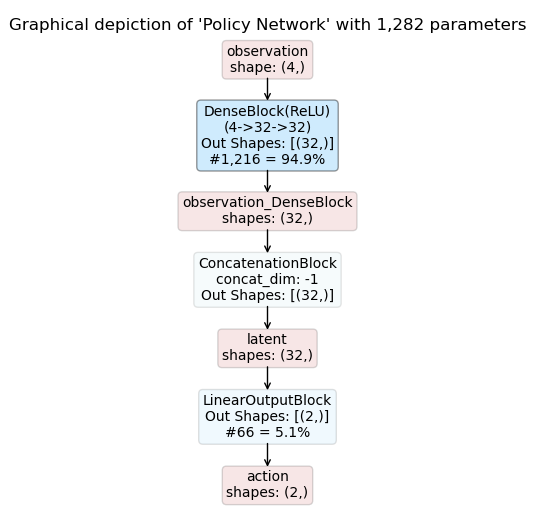

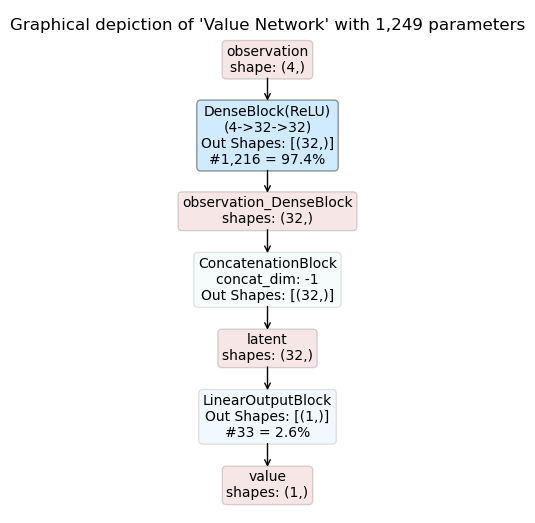

You will also find PDFs showing the inference graphs of the policy and critic networks in the experiment output directory. This turns out to be extremely useful when playing around with model architectures or when returning to experiments at a later stage.
